Wednesday, March 31, 2010

Roof Beam For Patio

The height of the beams on site acceptable...next the edge of roof at patio...

Construction of Roof Beam for New Patio. Check out the cantilever beam protrude..a must due to supporting of roof trusses..

Tuesday, March 30, 2010

Roof Trusses

Slanting column at new patio completed...next roof beam..

Taking down existing roof covering

The existing roof tiles temporarily taken down for new trusses construction.

Sunday, March 28, 2010

Roof Trusses

Roof trusses work start in the afternoon after casting slanting columns.

Reinforced Concrete For Slanting Columns

Concreting works in progress for another 2 columns.

Completed r.c column, next roof beam for new patio...

Saturday, March 27, 2010

New Patio Slanting Column Formwork

Formwork fixing for columns.

Friday, March 26, 2010

Roof Trusses Preliminary Works

Roof beam for Main Building works completed and preparation works for wall plate : for roof trusses.

All size timber for roof truss construction.

Groundbeam For New Patio

Concrete casting for new patio groundbeam

Finishing off concreting works.

Tuesday, March 23, 2010

The Plan

The proposed renovation work of this house as agreed by the owner.

The plan or design will be like the above pictures. This plan was drawn by Izani ( a friend of mine ) the consultant for this project. Itu tiang senget banyak susah mau bikin ooi..guna banyak otak dan banyak kayu mau pakai..

Special Column or Tiang

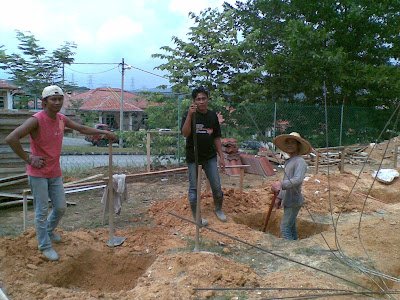

The manual excavation of pad footing for slanting columns. We need another 7 slanting columns in order to make the new extension different from normal house.
